                          Automatic Die Cutter

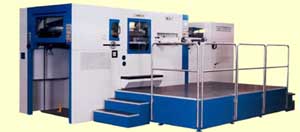

MW1050YA

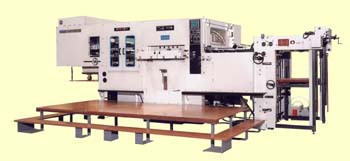

                             MW1050A II

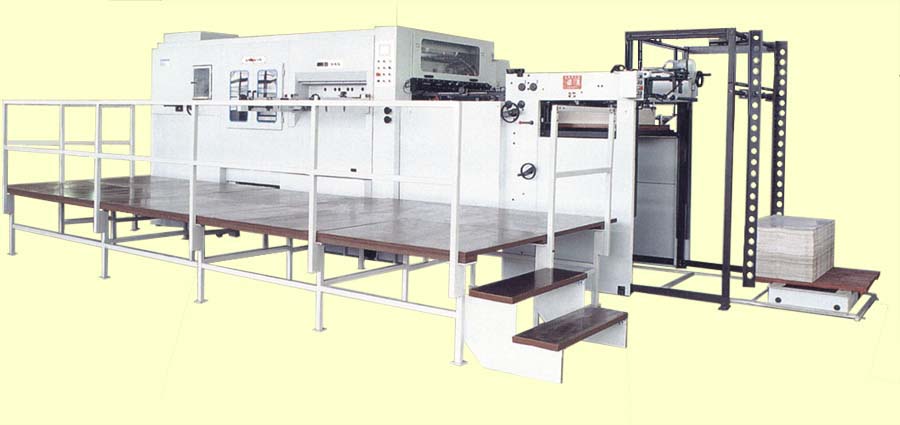

MW1300A

MW1050A MW1050A II MW1300A UNIT
Max. Sheet Size 1050 x 750 ( 41.3 x 29.5 ) 1050 x 750 ( 41.3 x 29.5 ) 1300 x 950 (51.2 x 37.4) mm (in.)
Stock Range
Paper:     0.1-1.5 mm

Corrugated Board  <=4mm

Paper:    0.1-1.5
Corrugated Board  <=4mm

0.3 – 3.2 mm

Corrugated Board: E, B flute

Max. Die Cutting Size 1040 x 730 ( 41 x 28.7 ) 1040 x 730 ( 41 x 28.7 ) 1290 x 930 (50.8 x 35.8) mm (in.)
Max. Pressure 270 320 420 t
Max. Speed 5,500 7,500   3,000  sph
Feeder Pile Height 1100 ( 43.4 ) 1100 ( 43.3 ) 1540 (61) mm (in.)
Delivery Pile Height 850 ( 33.5 ) 850 ( 33.5 ) 1340 (53) mm (in.)
Main Motor Power 11 11 15 kw
Total Power 21 21 28 kva
Net Weight 17000 ( 37400 ) 18000 (39600 ) 32,000 (70,000) kg (lbs)
Dimensions 6000 x 2860 x 2080 (20 x 10 x 7 ) 7453 x 3680 x 2095 (25 x 12 x 7) 8659 x 5120 x 2720 (28 x 17 x 10)  mm (ft.)

Other available sizes:   MW920  920x650mm (36”x26”)
    MW780  780x540mm (31”x21”)
Options:    Mabeg feeder
    Stripping unit
    Blanking unit
MW1050YA:   New. Please call or email us to request additional information
