| Automatic
Foil Stamper / Die Cutter |
| |
|
|
|

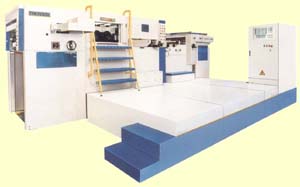

TYM1050S |
|
|

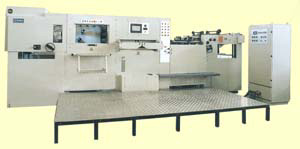

TYM1050
|
|
|
|

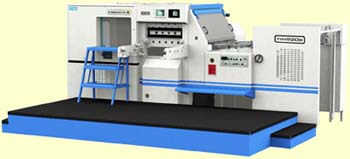

TYM920 |
|
 |
|
TYM780 |
|
 |
|

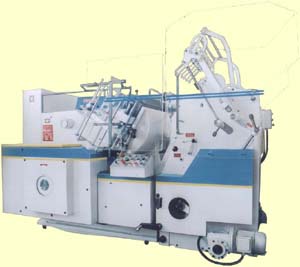

TYML750 |
|
|
TYM1050
|
TYM920
|
TYM780 |
TYML750 |
Units
|
|
Max. Sheet Size
|
1050 x 750 |
( 41.4 x 29.5 ) |
920 x 650 |
( 36.2 x 25.6 ) |
780 x 540 |
( 30.7 x 21.3 ) |
750 x 540 |
(
29.5 x 21.3 ) |
mm(in.) |
|
Min. Sheet Size
|
450 x 370 |
( 17.7 x 14.6 )
|
520 x 440 |
( 20.5 x 17.3 ) |
310 x 210 |
( 12.2 x 8.3 ) |
280 x 220 |
(
11 x 8.7 ) |
mm(in.) |
|
Max. Stamping Size
|
1020 x 700 |
( 40.2 x 27.6 ) |
900 x 600 |
( 35.4 x 23.6 ) |
750 x 510 |
( 29.5 x 20 ) |
700 x 500 |
(
27.6 x 19.7 ) |
mm(in.) |
|
Max. Die Cutting Size
|
1040 x 730 |
( 40.9 x 28.7 )
|
920 x 640 |
( 36.2 x 25.2 ) |
750 x 520 |
( 29.5 x 20.5 ) |
710 x 510 |
(
27.9 x 20 ) |
mm(in.) |
|
Stock Range |
|
Paperboard Min. 120
|
|
Corrugated Board <3
|
|
|
Paperboard Min. 90
|
|
Corrugated Board
<1.5
|
|
|
Paperboard Min. 90
|
|
Corrugated Board <=1.5
|
|
|
g/sq.m
|
|
mm |
|
Heating Capacity
|
12 heat zones |
6 or 10 heat zones |
6 heat zones |
4
heat zones |
|
|
21 kw |
12 kw |
9 kw |
7.2 kw |
|
Max. Stamping Speed
|
5,000
|
4,000 |
4,000 |
2,500 |
sph |
|
Max. Die Cutting Speed
|
5,500
|
5,500 |
5,500 |
2,500 |
sph
|
|
Max. Pressure
|
270 |
220 |
140 |
120 |
t |
|
Foil Feed Devices |
3 Longitudinal |
3 longitudinal |
3 longitudinal |
2
traversal |
|
|
700 ( 27.6 ) |
2 transversal |
2 transversal |
|
mm (in.) |
Max. Diameter
of Foil Roll
|
180 ( 7 ) |
180 ( 7 ) |
210 ( 8.3 ) |
250 ( 10 ) |
mm (in.) |
|
3" core
|
3" core
|
3" core |
3" core |
|
|
Feeder Pile Height |
1100 ( 43.3 )
|
1100 ( 43.3 ) |
950 ( 37.4 ) |
800 ( 31.5 ) |
in.
|
|
Delivery Pile Height
|
850 ( 33.5 ) |
1000 ( 39.3 ) |
700 ( 27.6 ) |
160 ( 6.3 ) |
in.
|
|
Capacity of all
motors
|
51 |
36 |
21 |
10 |
kw
|
|
Net Weight
|
20,000 ( 44,000 ) |
12,000 (
26,400 )
|
7,500 ( 16,500 ) |
4,200 ( 9,300 ) |
kg (lbs)
|
|
Dimensions |
6000x4640x2140
(20 x 15 x 7) |
4600x2610x2300
(15 x 8.5 x 7.5) |
4000x2300x1900
(13 x 7.5 x 6.2 ) |
3600 x 1720 x 1975
(11.8 x 11.8 x 6.5 ) |
mm (ft.)
|
|
|
|
|
|
Features
on TYM1050S: |
High
precision of film positioning at high speed |
| |
Foil advance
system |
| |
Foil brackets
removable to outside the machine for ease of foil change |
| |
Large foil roll |
| |
Complete Siemens
control system |
|
Options:
|
Mabeg
feeder |
| |
Hologram
unit |
| |
Elevation |
| |
Foil rewind unit |
|
|
