                    Folder/Gluer




                               lock bottom device, lock bottom
                          bracket, margin prefold device

             four/six corner gluing section

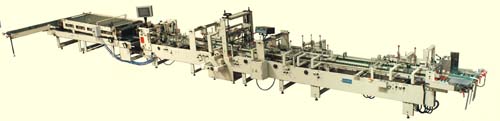

ZH800B



ZH1000A




ZH800A ZH1000A ZH800B
Sheets
Paperboard 200-650 gsm
E Flute corrugated Board
Paperboard 200-650 gsm
E Flute corrugated Board
Paperboard 180-600 gsm
E. N. & F flute board
Box Type
Straight Line
Double Wall
Crash-lock Bottom
Straight Line
Double Wall
Crash-lock Bottom
Four Corners
Straight Line
Double Wall
Crash-lock Bottom
Four /Six Corners
Paper Size
(Max./Min.)
31.5"/5.5" 40"/5.5"
Open box: 820mm/54mm (32.3"/2.1")
Close box: 400mm/24mm (15.8"/0.95")
Height of box: 800mm/55mm(31.5"x2.2")
Max. Speed 9000"/min 9000"/min 16000"/min
Main Motor Inverter 5.5 kw eddy-current motor 7.5 kw 15 kw
Weight 13200 lbs. 17600 lbs. 11000 lbs
Dimension 25'x5'x4.5' 43'x11'x11' 45.5'x7.6'x5.7'


 Notes:
1.  Applications: folders, regular & irregular packaging boxes.
2.   B series high speed folding carton gluers are available in two other sizes: ZH600B & ZH1000B.
