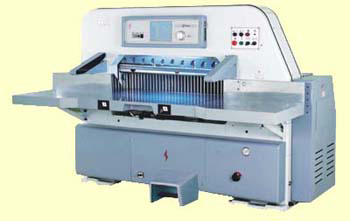

| Paper Cutter |
| |
|
|
|
QZYWC3C
|
|
|
|
QZYWC3C |
780 |
920 |
1150 |
137 |
Unit |
| Max.
cutting width |
78
(30) |
92
(36) |
115
(45) |
137
(54) |
cm
(in.) |
| Max.
cutting depth |
78
(30) |
92
(36) |
115
(45) |
145
(57) |
cm
(in.) |
| Min.
cutting depth |
2
(0.79) |
2
(0.79) |
2.5
(0.98) |
2.5
(0.98) |
cm
(in.) |
| Max.
cutting height |
12
(4.72) |
12
(4.72) |
16
(6.30) |
16.5
(6.50) |
cm
(in.) |
| Cutting
speed |
40 |
40 |
40 |
40 |
/min |
| Max.
pressure |
30000 |
35000 |
40000 |
45000 |
N |
| Main
motor |
3 |
3 |
4 |
4 |
kw |
| Backgauge
motor |
0.75 |
0.75 |
0.75 |
0.75 |
kw |
| Air
pump |
0.75 |
0.75 |
0.75 |
0.75 |
kw |
| Net
weight |
2800 |
3000 |
3500 |
4500 |
kg |
| Overall
dimensions |
211x141x192 |
226x141x192 |
229x150x205 |
265x150x205 |
cm |
|
| SFT-1 computerized control
system, 10” color touch screen, resolution display: 0.01mm, accuracy +
0.025mm, self-diagnostic system, unlimited programs, maximum
backgauge speed: 30cm/sec. (11.8”/sec.). |
|
|
|
|
