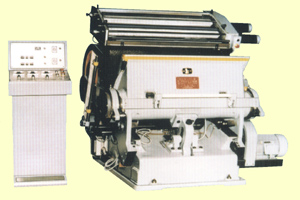

                  Handfed Foil Stamper / Die Cutter


TYMB1040


TYMB650A TYMB920 TYMB1040 Units
Max. Inside Chase Size 25.5x19 36x26 41x28 in.
Max. Stamping Width 22 35 39 in.
Max. Foil Advance 15.7 25.5 27.5 in.
Speed 1320 1320 1200 sph
Motor Power 2.2 3 4 kw
Heating Capacity 7 12.6 16.5 kw
Net Weight 4400 9240 11000 lbs
Dimensions 4.2x4.3x5 5.5x5.6x5.4 6.4x5.1x5.4 ft.


    Features::   Auto oiling
    Inverter
    Air clutch
    Air separation device
    Heavy duty
    Honeycomb plate
    Specially hardened cutting plate
