UV Coater

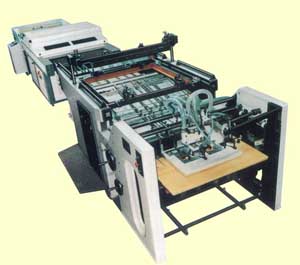

Automatic Screen Press for Spot and Flood Coating

Model

WPG720

WPG780

WPG1020

Max. sheet size

28.3 x 20.5

30.7 x 21.3

40.2 x 29

in.

Min. sheet size

13.8 x 10.6

22 x 13.8

in.

Max. work width

28.3 x 19.7

30.7 x 20.5

40.2 x 28.3

in.

Paper thickness

120 – 250

180 - 250

gsm

Frame size

34.7 x 34.7

37 x 37

50.4 x 44.9

in.

Speed

3000

sph

Power of unit length

Power of lamp

7.2

8.8

kw/ea.

No of lamps

Total power

32.5

Weight

10450

10890

15370

Dimensions

27x6.2x4.5

27.3x6.4x4.5

29x8.5x4.9

ft.

Notes:
1.	Also available in 41”x30”. Model No. WPG1050.
2.	Presses can run lighter and heavier stock with optional devices.

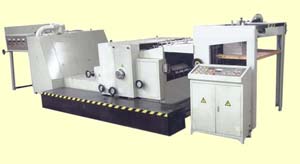

Automatic Blanket Coater for Spot and Flood Coating on Both Light and Heavy Stock

Model	GUVJ1100	GUVJ1300
Max. sheet size	1090 x 800mm (43”x31.5”)	1285 x 930mm (50.6”x36.6”)
Min. sheet size	420 x 360mm (16.5”x14”)	410 x 340mm (16.1”x13.4”)
Paper thickness	80 – 420 gsm	80 – 420 gsm
Power of UV lamp	3 x 9.75 kw	3 x 10.75 kw
Max. speed	5000 sph	5000 sph
Dimensions	7800x2590x1950mm (21’x8.5’x6’)	7800x2900x1950 (25.6’x9.5’x6.4’)
Total power	43 kw	45 kw
Weight	6600 kg (14520 lbs)	7500 kg (16500 lbs)

Automatic Roller Coater for Flood Coating on Both Light and Heavy Stock

Model No.

ZUV650A

ZUV920A

ZUV1200A

Max. work width

650 x 480mm (25.6”x19”)

920 x 650mm (36.”x25.6”)

1150 x 880mm (45’3”x34.6”)

Min. work width

440 x 307mm (17.3”x12”)

546 x 393mm (21.5”x15.6”)

787 x 546mm (31”x21.5”)

No. of rollers

UV light

3 x 7.5 kw

3 x 8 kw

3 x 10 kw

Max. speed

5,000 sph

Sheet thickness

80-600 gsm

Total power

32 kw

40 kw

45 kw

Weight

5,800 lbs

6,800 lbs

9,000 lbs

Dimensions

29.5’ x 4.3’ x 5.2’

29.5’x5’x5.2’

29.5’x5.9’x5.2’

Notes:

1. Automatic roller coaters for flood coating are also available in two other sizes:

29”x26”, Model No. ZUV740A

41”x30”, Model No. ZUV1040A

2. Other options for roller coaters:

Automatic roller coaters for spot and flood coating: Model No. ZUVJ920 & ZUVJ1200

Manual coaters for flood coating: UV650A, UV740A, UV920A, UV1040A & UV1200A
