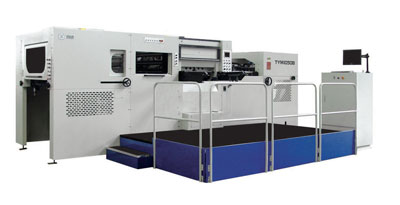

TYM1050B

Maximum sheet size
1050x750mm
41.3” x 29.5”
Minimum sheet size
390x370mm
15.4” x 14.6”
Maximum cutting size
1040x730mm
41” x 28.7”
Steel rule height
23.8mm
0.937”
Minimum gripper margin
4mm
0.16”
Inner size of chase
1120x760mm
44” x 30”
Cutting plate thickness
5mm
Distance between platens
32.3+0.1mm
Stock range
0.2-1.5mm
Maximum die cutting speed
5000 sheets/hour
Maximum stamping speed
4500 sheets/hour
Maximum work pressure
300 tons
Feeder pile height
1150 mm
45.2”
Delivery pile height
850mm
33.5”
Total capacity
45 kw
Dimensions (L x W x H)
6000x4640x2140mm
19.7’x15.2’x7’
Total Weight
18,000 kg
40,000 lb

Maximum foil width
1050mm
41”
Minimum foil width
15mm
0.59”
Maximum stamping size
1020x700mm
40”x29”
Maximum foil pull
700mm (27”)
700mm (27”)
Foil supply bars max. capacity
203mm (8”) diameter
203mm (8”) diameter
Rewind bars max. capacity
203mm (8”) diameter
203mm (8”) diameter
Temperature control range
0 – 200 degrees Celsius
No. of heat zones
12
Heating capacity
25 kw
Foil feed device
3 longitudinal
3 longitudinal
2 transversal
2 transversal
Maximum foil roll diameter
180mm
3”
Foil core diameter
25.4mm, 76.2mm
1”, 3”
