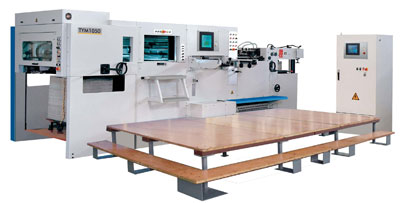

TYM1050Y

Features
  • Complete Siemens control system
  • LCD touch screen display and self-diagnostic system by PLC
  • Precise registration
  • Up to 7,500 sph
  • Foil advance system programmable and servo motor driven
  • Longitudinal foil sending shafts 3 standard, 3 optional
  • Transversal foil sending shafts 2 optional
  • Longitudinal foil sending shafts able to slide outside the machine for easy foil change
  • Optional independent foil rewind unit with 6 servo motor driven foil pulls available as an option.
  • 12 heat zones controlled by individual timers
  • Stamping and embossing able to finish at the same time
  • Automatic impression on/off system, adjustable dwell timer, non-stop feeder with preloading device, non-stop delivery, tape inserter, foil break detection and more.

Specifications
Max. sheet size

1050x750mm
41.3”x29.5”
Min. sheet size

450x370mm
17.7”x14.5”
Max. stamping size

1020x700mm
40”x27.5”
Max. die cutting size

1040x730mm
41”x28.7”
Inside chase

1120x760mm
44”x30”
Gripper margin

4-12mm
Stock range

150-500 gsm
Heating capacity

21kw
Heat zones

12
Max. mechanical speed

7500 sph
Max. pressure

300 metric tons
Foil feed device

3 longitudinal
Max. foil advance

720mm
28.3”
Min. foil width

15mm
0.59”
Max. foil roll diameter

250mm
9.8”
Max. foil core diameter

25 or 76mm
1” or 3”
Feeder pile height

1100mm
43.3”
Delivery pile height

850mm
33.5”
Rate power

42kw
42kw
Dimensions

6000x4610x2140mm
19.7’x15’x7’
Net weight

20000kgs
44000 lbs

Options
  • Preloading device
  • Mabeg feeding system
  • Hologram unit
  • 3 additional longitudinal foil shafts
  • 2 transversal foil shafts
  • Independent foil rewind station with 6 foil pulls
  • Elevation

Also available in 41"x30"
