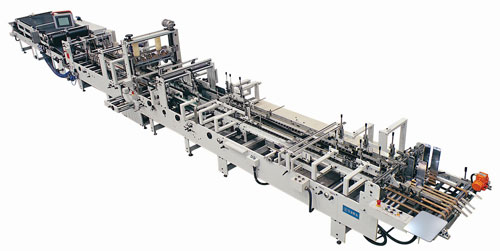

| ZH800B |
|
Features:
- Feeding (mechanical)
- Grinder
- Lower left/right mechanical glue units
- Upper left/right mechanical glue units
- Digital positioning gauges for paper size adjustment
- Pneumatic counter kicker
- Safety stops for messed up paper in folding section and pressing sections
- Lock bottom device
- Pressing section with pneumatic adjustment
- Touch screen (showing all operation commands, problem diagnosis, and problem areas graphically)
- Wireless remote controller with 6 functions: start, stop, inch drive, main machine speed control, feeder on/off, and delivery speed control
- Changeover of automatic delivery and single sheet delivery
- Pre-fold device
|
Additional Features:
- Feeding (motorized shaker)
- Special pre-fold device
- Extra large or extra small bottom locking devices
- Vacuum for the grinder
- Motorized ascending/descending of the upper glue units
- Special folding device for double wall
- Motorized paper size adjustment
- Mini box folding device
- Frontal squaring for folded boxes
- Delivery extension (90 degrees turn)
- Powder injection counter
- Barcode reader
- Bad box kicker
- Electronic glue guns
- 4, 6 corner section w/ servo motor and an additional touch screen
|
|
Specifications:
Stock range
Max. speed
Dimensions(L): |
|
Paper board 180-600 gsm
Corrugated board: E, N & F
400 m/min
13860mm |
131 ft/min
46’ |
|
|

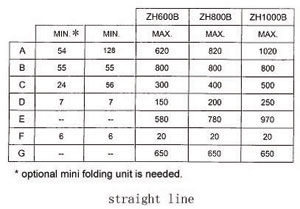

straight line |
|
|

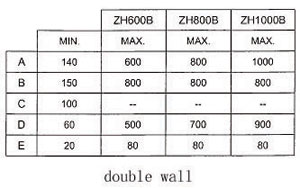

double wall |
|
|

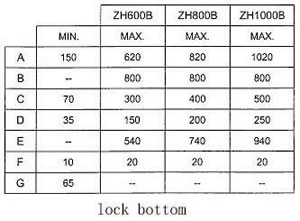

lock bottom |
|
|

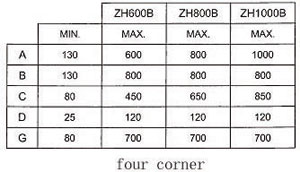

4 corner |
|
|

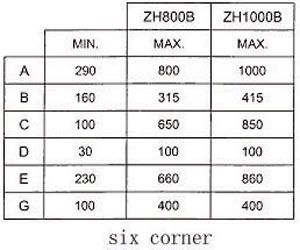

6 corner |
|
|

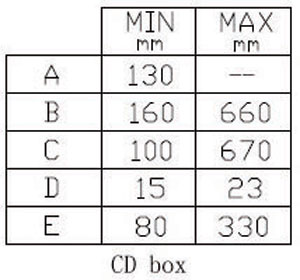

CD box |
|
| |
