KO TAI MACHINES, INC.
                    POST-PRINTING MACHINERY EXPERT                                         DIE CUTTERS                                                                         FOIL STAMPERS                                                                           FOLDER/GLUERS                                                                        UV COATERS                                                                        PAPER CUTTERS                                                                   LAMINATORS

                   Handfed Die Cutter (I)

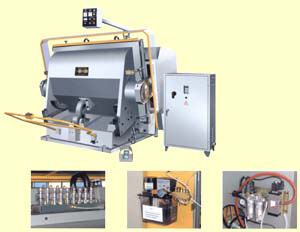

ML1800

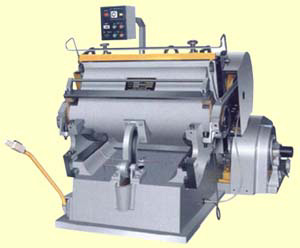

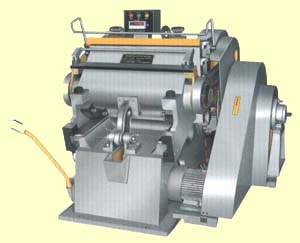

                                         ML1040                                                                              ML675


ML1800 ML1600 ML1400 ML1300 ML1100 ML1040 ML930 ML675
Inner Chase Size 71"x51" 63"x49" 55"x39.4" 51"x36" 43"x31.5" 41"x28.4" 36.5"x26" 26.5"x19"
Max. Rule Length <172' <165' <148' <132' <105' <99' <82' <49'
 Speed 16+2 s/m 16+2 s/m 18+2 s/m 18+2 s/m 18+2 s/m 23+2 s/m 23+2 s/m 25 s/m
Motor Power 11kw 11 kw 7.5 kw 5.5 kw 5.5 kw 4 kw 4 kw 2.2kw
Net Weight 31900 lbs 29700 lbs 14960 lbs 12320 lbs 10560 lbs 8140 lbs 7040 lbs 4400 lbs
Dimensions 7.2'x7.2'x7.1' 7.2'x7.2'x7.1' 6.7'x8'x7.2' 6.2'x7.6'x6.9' 6.4'x6.9'x6.7' 6.4'x6.5'x5.9' 6.4'x5.5'x5.9' 5'x5.3'x4.6'

 Heavy duty
 Strong cutting plate
 Auto oiling
 Inverter
 Air clutch
