Model

PYQ2000Q

PYQ1480Q

PYQ1300Q

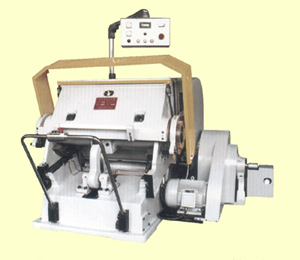

PYQ107Q

PYQ920Q

PYQ401A

Max. Inner
Chase Size

2000x1300 mm (78.7”x51.2”)

1480x1040 mm
(58 ¼”x41”)

1300x920 mm
(51 1/8”x36 ¼”)

1040x720 mm (41”x28 3/8”)

920x660 mm
(36 ¼”x26 6/8”)

650 x 480 mm (25.6”x18.9”)

Speed

14 + 1 s/min

20+2 s/min

12-24 s/min

12-26 s/min

20-30 s/min

27 s/min

Max. Rule Length

<50 m (164’)

< 40 m (131 ¼”)

<36 m (118 ¼”)

<28 m (97 7/8”)

<24 m (78 ¾”)

<14 m (46”)

Max. Pressure

200 metric tons

180 tons

160 tons

120 tons

100 tons

70 tons

Motor Power

15 kw

11 kw

7.5 kw

5.5 kw

3 kw

2.2 kw

Weight

14500 kg
(31900 lbs)

9,000 kg
(19800 lbs)

6,500 kg
(14300 lbs)

4,300 kg
(9460 lbs)

3,500 kg
(7700 lbs)

2,000 kg
(4400 lbs)

Dimensions

260x184x205 cm (102”x73”x81”)

203x227x192 cm (80”x89”x76”)

229x220x218 cm (90”x87”x86”)

158x250x136 cm (62”x98”x54”)

175x164x137 cm (69”x65”x54”)

197x130x125 cm (77.6”x51”x49”)
